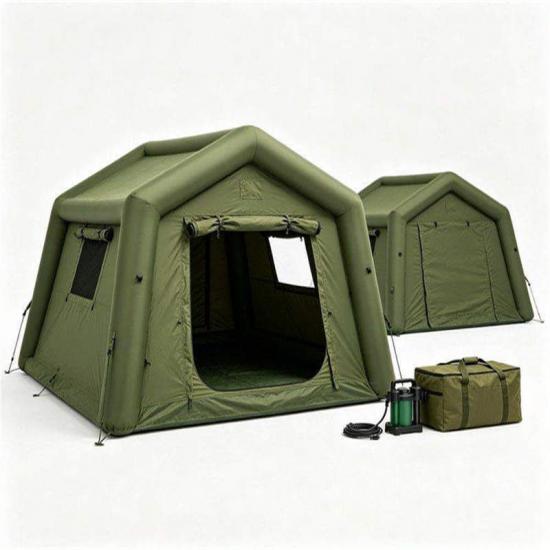

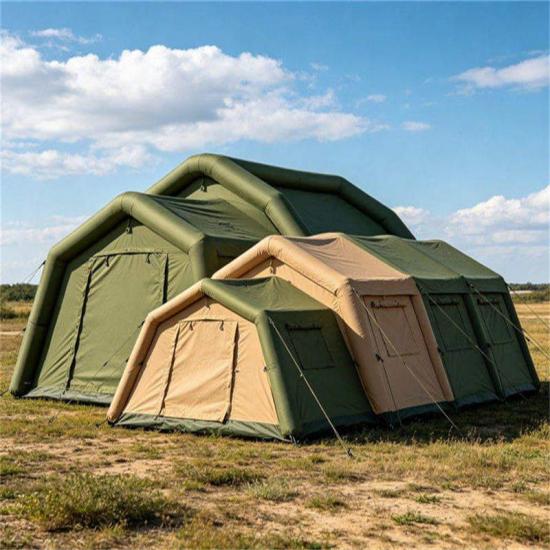

Tactical Military Inflatable Tent
Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations Military Inflatable Tents For Field Command And Tactical Operations

Military Inflatable Tents For Field Command And Tactical Operations

Our tactical military inflatable tent adopts heavy‑duty olive green PVC material. It supports ultra‑fast inflation deployment, modular interconnection to build complete field camp. Excellent windproof, waterproof performance adapts to desert, snow, mountain and other harsh terrains for command, logistics and field shelter missions.


Note: Price for reference only. Exact price based on quantity, size, weight and custom details.

  • model no. :

    IT-8-B
  • Brand:

    YRF
  • market price :

    $933.8
  • sale price :

    $466.9
  • price range :

    5-100/$466.9
  • Color :

    Multiple Colors
  • port of dispatch :

    Guangdong/Guangzhou
  • Payment :

    TT, Paypal, Western Union
  • min order :

    1
  • original region :

    Made in China
  • Lead Time :

    5-15days
inquiry now
product description

Military Inflatable Tents For Field Command And Tactical Operations


As a leading military inflatable tent manufacturer in China, YIROUFANG TEXTILE (YRF) provides high-quality air beam tent solutions for field command posts, tactical operations centers, and military field hospitals. Our modular tent systems feature rapid deployment capability, ballistic protection, and durable construction designed for the harshest battlefield environments. With over 20 years of manufacturing experience, we deliver reliable military shelter solutions worldwide.

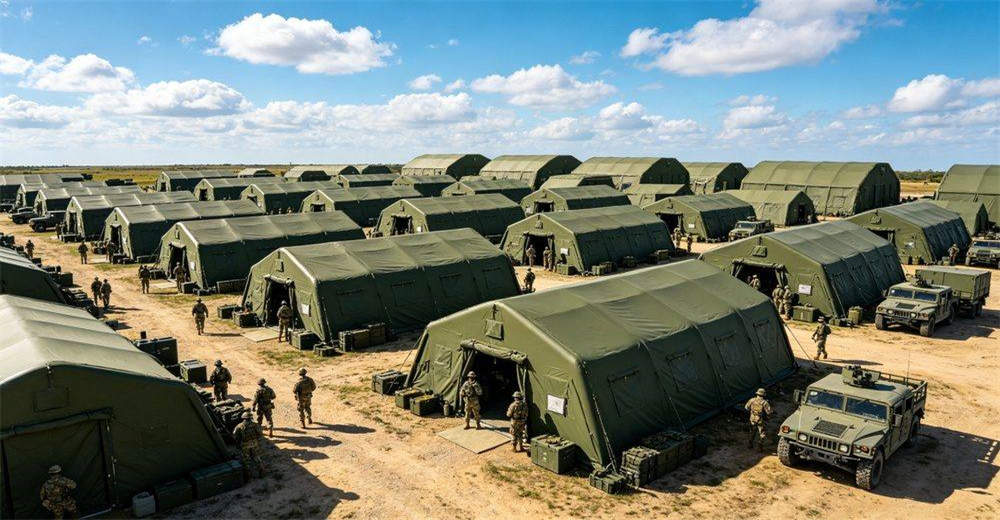

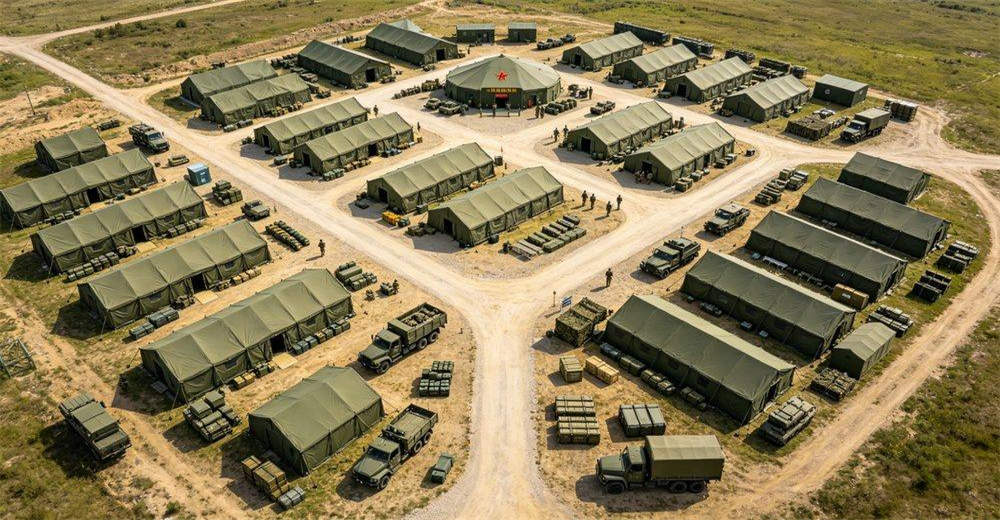

Aerial 45-degree view of a complete military field camp with multiple inflatable tents arranged in tactical formation, showing command post, logistics area and personnel activity zones in operational environment






Table of Contents
Military Field Tent: Planning Mil...
Military Field Tent: 30-Second Ov...
Military Field Tent: Military Ope...
Military FiIn the deployment of m...
Military Field Tent: Equipment an...
Military Field Tent: Staffing and...
Military Field Tent: Best Practic...
Related Military Field Tent Resou...
Frequently Asked Questions (FAQ)

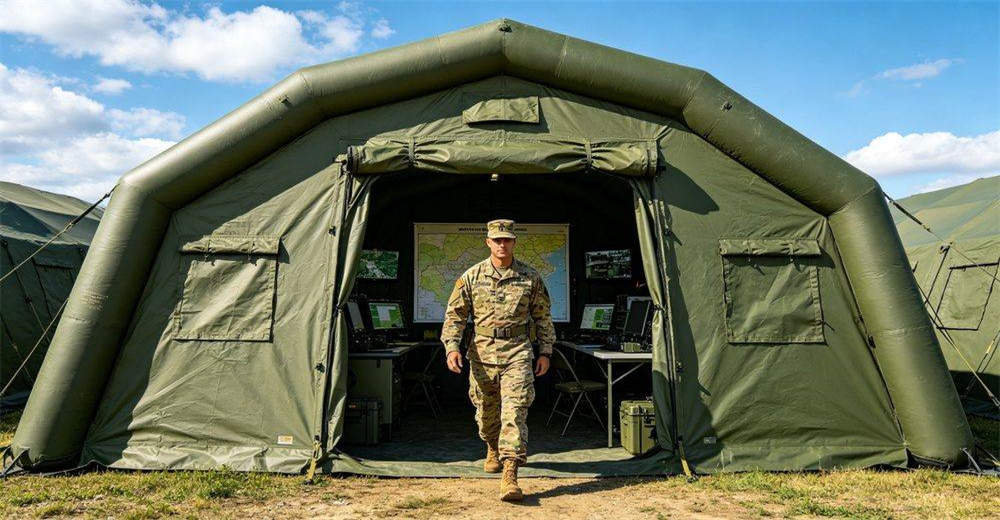

Front eye-level close-up of a military command post inflatable tent with entrance open, showing rugged olive green PVC exterior, reinforced door frame and tactical deployment setup ready for field operations



Our military inflatable tent systems combine quick setup convenience with heavy duty PVC durability. Whether you need a portable shelter for emergency response, a weatherproof tent for extended field operations, or a complete base camp solution, our factory direct military tents deliver proven performance. The air beam structure with inflatable air column technology ensures fast inflation and easy assembly, while high frequency welding construction guarantees long-lasting reliability. Our tactical tent and army tent solutions support humanitarian aid, disaster relief, and emergency shelter missions worldwide, with command center and command post tent configurations available for operational headquarters.

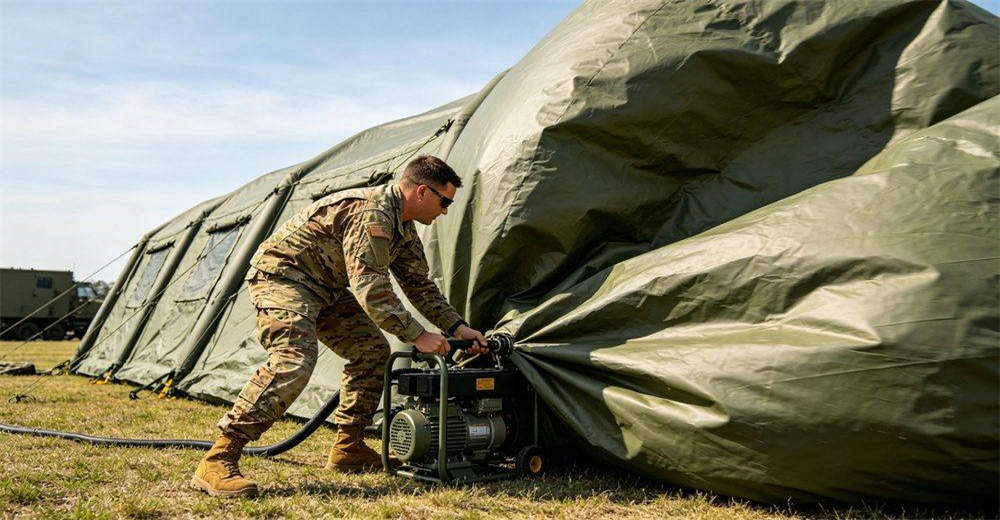

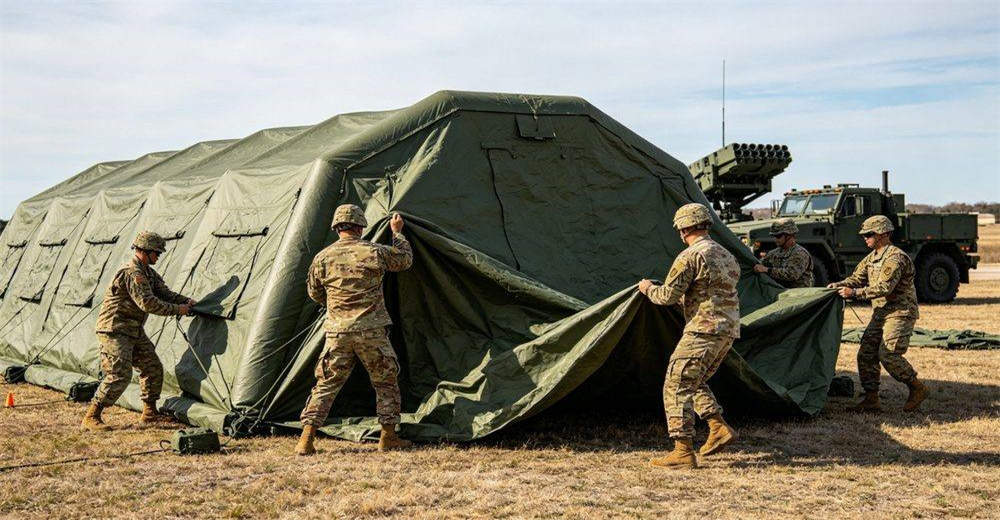

Side 45-degree view of soldiers rapidly deploying and inflating a military tent with electric pump, demonstrating quick setup capability, teamwork and efficient field deployment process in operational conditions


Our military inflatable tent systems combine quick setup convenience with heavy duty PVC durability. Whether you need a portable shelter for emergency response, a weatherproof tent for extended field operations, or a complete base camp solution, our factory direct military tents deliver proven performance. The air beam structure with inflatable air column technology ensures fast inflation and easy assembly, while high frequency welding construction guarantees long-lasting reliability.

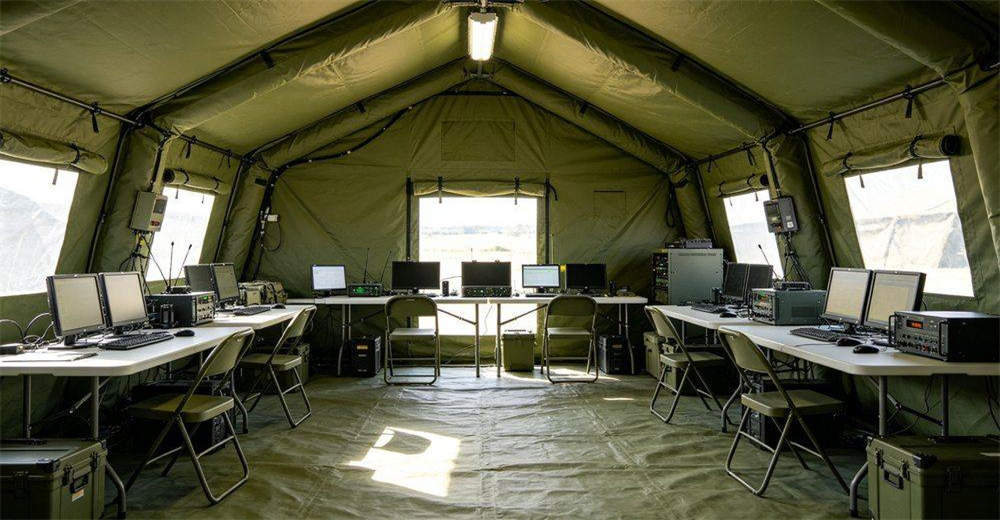

Interior view of a military command center inside an inflatable tent, showing spacious layout with communication equipment, tactical tables, lighting system and personnel coordinating field operations efficiently



Related Resources & Recommendations
50sqm Military Command Tent
View our main military command inflatable tent product


60sqm Large field hospital Tent
View our large field hospital tent


Firefighting Decontamination Scenario Solution
View the complete deployment solution for firefighting decontamination scenarios

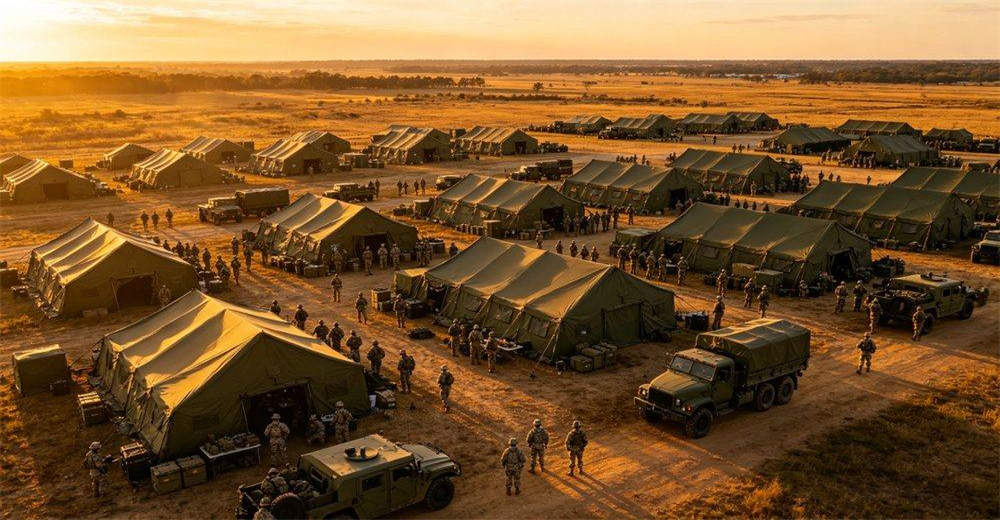

Aerial overhead view of a complete military field camp at dusk with warm golden lighting, showing multiple inflatable tents, vehicle parking, perimeter security and organized tactical layout in field environment



Planning Military Field Shelter Capability?
Get factory-direct pricing on complete military tent systems, command post configurations, and tactical field shelters built for rapid deployment. Our military inflatable tent solutions serve as versatile field operations tent platforms for army tent requirements, tactical tent deployments, and portable shelter needs across diverse operational environments., command post configurations, and tactical deployment support. As a leading manufacturer of military field tent, YRF Textile provides high-quality solutions for emergency response. As a professional military field tent manufacturer in China, every military field tent we produce undergoes strict military-grade quality testing to ensure reliable command shelter even in the harshest battlefield environments.

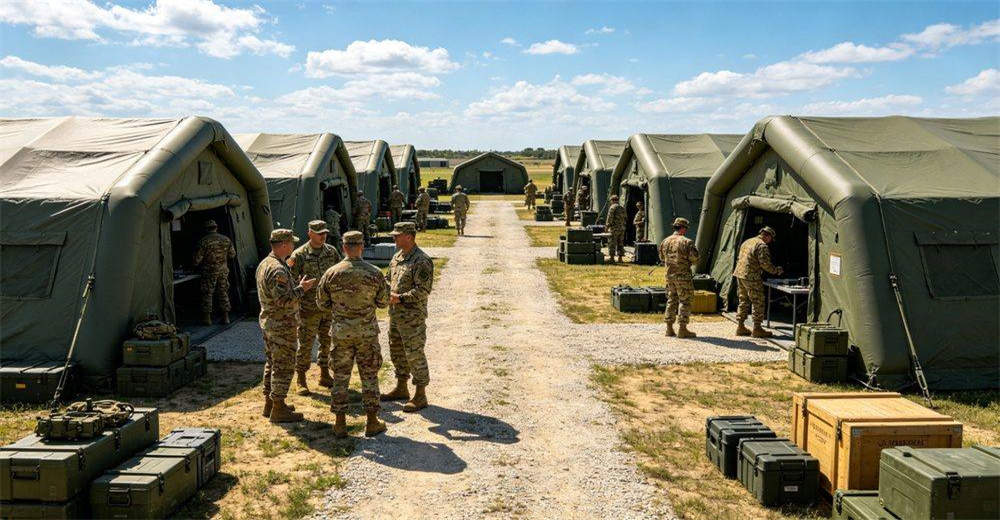

Birds-eye view illustration of military field camp planning capability, showing optimal tent placement, traffic flow, security perimeter and functional zoning for efficient tactical operations in various terrain conditions



30-Second Overview: Military Tent Deployment
Experience impressive rapid deployment with our quick setup military shelter system. Designed for easy assembly and fast inflation, our portable shelter solutions can be fully operational in under 5 minutes. This weatherproof tent features wind resistant construction with waterproof PVC material, ensuring protection in any environment.

Military operations demand rapid deployment of shelter solutions that can be established in remote, austere, or hostile environments. Our inflatable military tents provide field command posts, tactical operations centers, forward operating bases, field medical facilities, troop billeting, and supply storage — all deployable in minutes by small teams with minimal equipment.

ns require rapidly deployable, durable, and tactically configured shelter solutions that can be established in remote, austere, or hostile environments.

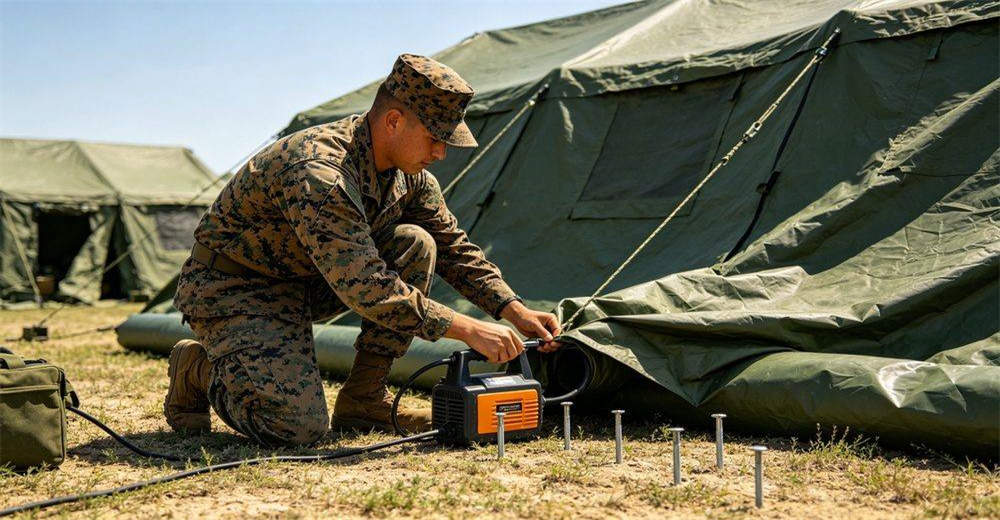

Overview of 30-second rapid deployment process for military inflatable tent, showing unpacking, positioning, electric inflation and final setup sequence, demonstrating ultra-fast field deployment capability for emergency operations



Military inflatable tents
provide field command posts, tactical operations centers, forward operating bases, field medical facilities, troop billeting, and supply storage — all deployable in minutes by small teams with minimal equipment.

This guide covers everything military units, defense organizations, and security forces need to know about deploying inflatable military tents in field operations: recommended tent configurations for different operational requirements, tactical camp layout planning, deployment timelines for rapid establishment, equipment and supply checklists including tactical accessories, staffing and command structure models, and real-world best practices from military field operations worldwide. This military field tent is designed for military operations, This military field tent is certified to GB 8624 B1 flame retardant standards.



Timeline display showing complete military tent deployment process from folded storage to fully inflated operational state, with each step clearly illustrated including unpacking, inflation, securing and final inspection



Typical Setup Time
Command Post Capacity
Tactical Features
Temperature Range
5-10 minutes
20-25 personnel
Camo, Blackout, Netting
-30°C to +65°C





wind resistance
Waterproof Rating


62-75 km/h
3000mm




Close-up of electric air pump actively inflating a military tent, showing high-pressure airflow, durable construction, portable design and efficient inflation capability for rapid field deployment in operational conditions



In the deployment of military field tent, Military inflatable tents are used by armed forces (army, navy, air force, marine corps), special operations forces, peacekeeping and stabilization forces, civil defense and emergency response units, and private military and security companies worldwide. Their rapid deployment, tactical configuration options, durability in austere environments, and ability to support command, operations, medical, and logistics functions make them the standard for modern military field shelter. This military field tents meets international quality standards.



Military operational scenarios showing shelter challenges across multiple terrains including desert, mountain, forest and arctic environments, demonstrating inflatable tent adaptability and performance in extreme field conditions




Military Operational Scenarios and Shelter Challenges
Our versatile tactical tent systems are designed for diverse operational environments, from established base camp installations to forward-deployed units. Whether supporting humanitarian aid missions, disaster response operations, or combat readiness exercises, our army tent solutions deliver reliable shelter where it's needed most.

For field hospital applications, multiple tents can be connected via sealed tunnels to create a complete medical complex with specialized departments: Triage, Surgery, Ward, Laboratory, Emergency, ICU, Pharmacy, Medical Records.

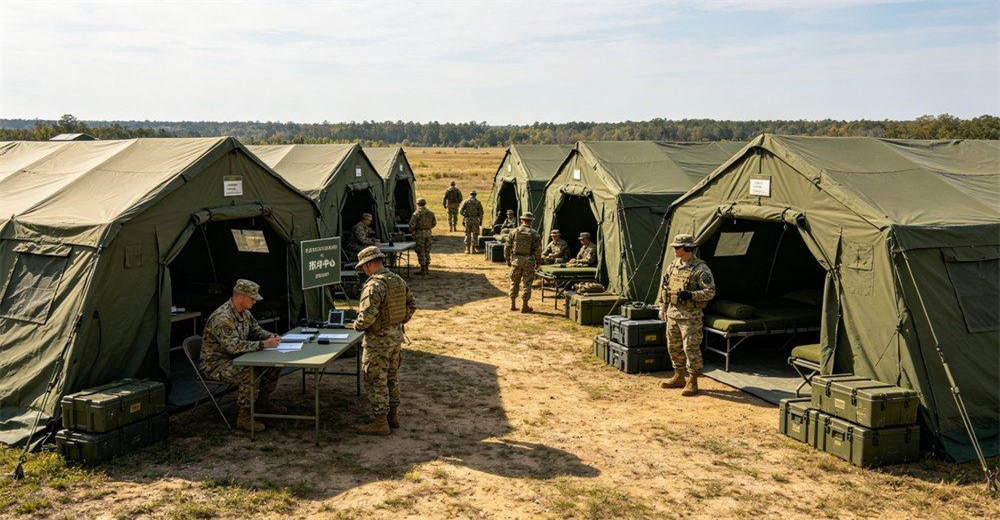

Tactical camp layout planning showing organized arrangement of command post, living quarters, logistics area, medical station and vehicle parking, with clear traffic flow and security perimeter for efficient field operations




Tactical Camp Layout Planning
Proper tactical camp layout is essential for command effectiveness, security, operational efficiency, and force protection. A well-planned layout minimizes vulnerabilities, improves command and control, supports operational tempo, and protects personnel and equipment.

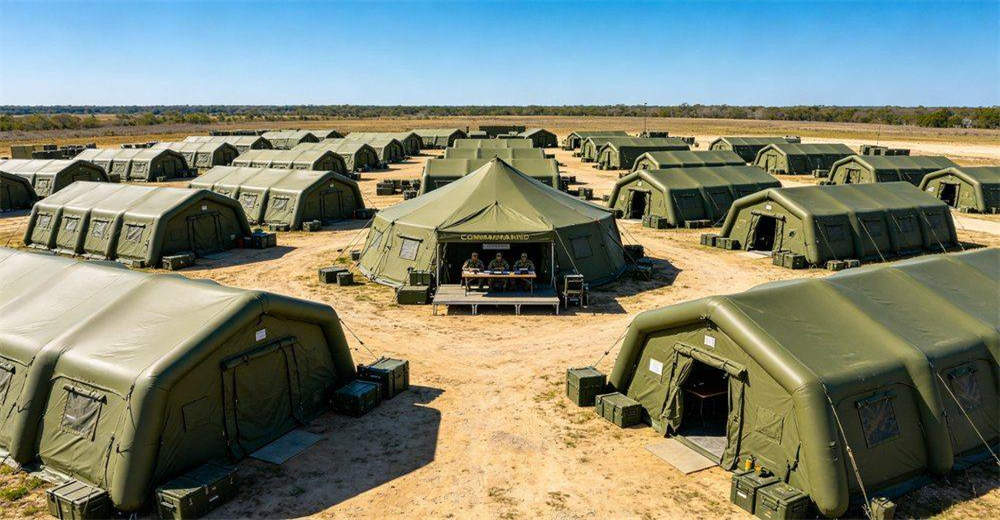

Command tent positioned centrally in tactical camp layout, surrounded by support tents and security perimeter, showing optimal command post placement for efficient communication, coordination and control of field operations




Core Tactical Layout Principles
Dispersion: Maintain adequate spacing between tents (minimum 5-10 meters for tactical sites, more for high-threat areas) to minimize casualties from indirect fire, air attack, or VBIEDs. Avoid clustering tents in patterns that create attractive targets.
Concealment and Camouflage: Position tents to take advantage of natural cover (trees, terrain features, buildings). Deploy camouflage netting over all key facilities. Use disruptive patterns and avoid regular geometric layouts that are easily identifiable from aerial observation. Minimize vehicle tracks and signs of activity.
Command Post Centralization: Place command and communications facilities in central, protected locations, not on the perimeter. Position intelligence, operations, and communications in close proximity for efficient coordination, but with adequate dispersion for survivability.
Perimeter Security: Establish layered defense: outer perimeter (observation posts, listening posts, early warning), inner perimeter (access control, barriers, guards), and key point security (command post, communications, supply, ammunition). Designate controlled entry/exit points with access control procedures.
Functional Zoning: Organize camp by functional areas: command zone (headquarters, operations, intelligence, communications), billeting zone (troop housing, rest areas), logistics zone (supply, maintenance, fuel, ammunition), support zone (dining, medical, recreation, sanitation), and vehicle park (separated from personnel areas for safety and security).
Blackout and Light Discipline: Position tents to minimize light emission from openings. Use blackout liners in all tents. Position lighting to avoid creating visible signatures. Establish light discipline procedures and enforce blackout conditions during darkness.
Emergency Response: Plan for emergency scenarios: medical evacuation routes and landing zones, fire response equipment and access, chemical/biological/radiological/nuclear contamination avoidance and decontamination areas, assembly points for accountability, and alternate command post locations in case primary is compromised.
Expansion and Relocation: Design layout with flexibility for expansion (additional tents, personnel, capabilities) and rapid relocation (ability to tear down and move quickly if tactically required). Avoid permanent or semi-permanent construction that limits mobility.

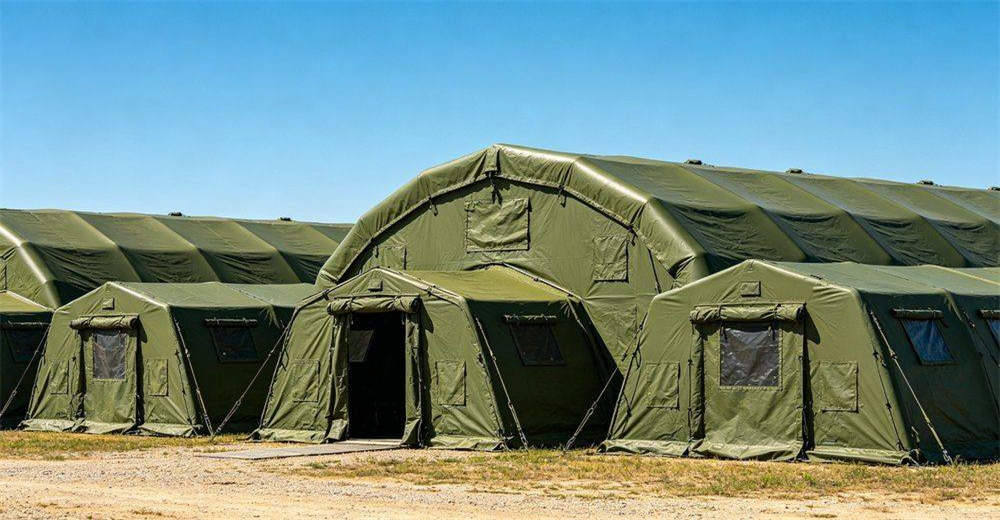

Multiple inflatable tents combined into modular camp system, showing interconnected command, living and logistics units with connecting corridors, demonstrating scalable field shelter solution for varying operational requirements




Recommended Layout: Battalion/Brigade Command Post

Zone

Location

Facilities

Notes

Outer Perimeter

Camp boundary

Observation posts, listening posts, early warning sensors, barriers, concertina wire

Layered defense, 360° coverage

Entry/Exit Control

Designated access points (1-2)

Guard posts, access control, vehicle search areas, ID checking

Controlled access, separate pedestrian/vehicle

Command Zone (Central)

Center of camp, protected

Main command tent, intelligence/planning tent, communications shelter

Central, protected, close coordination

Billeting Zone

Perimeter-adjacent, dispersed

Troop tents, officer quarters, rest areas, personal gear

Dispersed, adequate spacing, separate from high-value targets

Logistics/Support Zone

Central-accessible location

Dining facility, medical aid station, recreation/MWR, sanitation

Accessible to all personnel, adequate capacity

Vehicle Park

Perimeter, separate from billeting

Vehicle parking, maintenance areas, fueling points, dispatch

Separated from personnel, fire safety, access control

Emergency Areas

Designated locations

First aid stations, emergency assembly points, fire fighting equipment, evacuation routes

Clearly marked, accessible, regular drills

Camouflage & Concealment

All areas

Natural vegetation, camouflage netting, disruptive patterns, signature reduction

All high-value targets, minimize aerial detectability

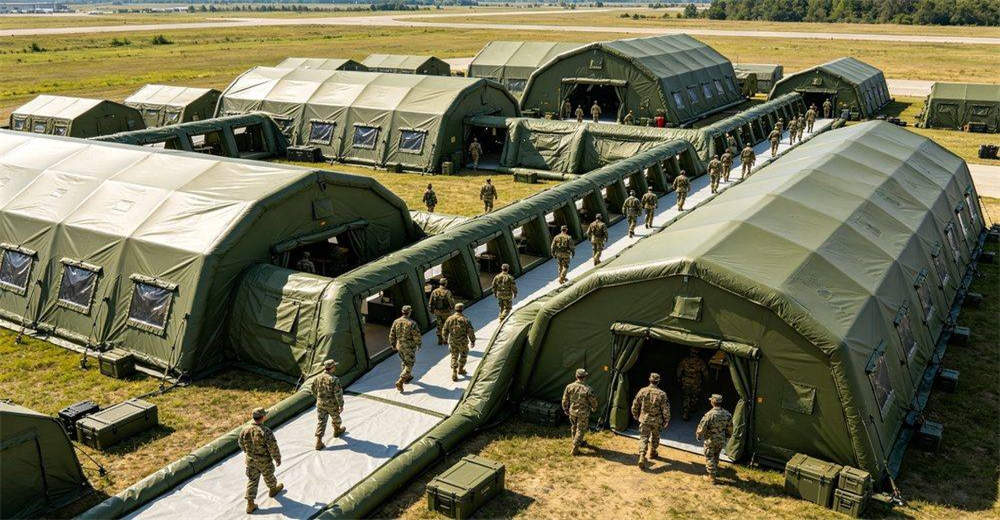

Connecting corridor between multiple military inflatable tents, showing modular connection design with sealed joints, weatherproof sealing and easy assembly, enabling rapid expansion of field shelter capacity in operations




Equipment and Supply Checklist
A military field camp requires comprehensive equipment and supplies to support command, operations, logistics, and personnel welfare. Our military inflatable tent systems feature wind resistant engineering and waterproof PVC construction, ensuring reliable protection in challenging environments. The air beam structure with inflatable air column technology enables quick setup and easy assembly, while the portable shelter design simplifies logistics and transportation. Each weatherproof tent can be configured as a field hospital, command center, or base camp facility to meet your specific operational needs. to support command, operations, logistics, and personnel. Below is a categorized checklist for a battalion/brigade command post (3-5 tents, 20-40 personnel).

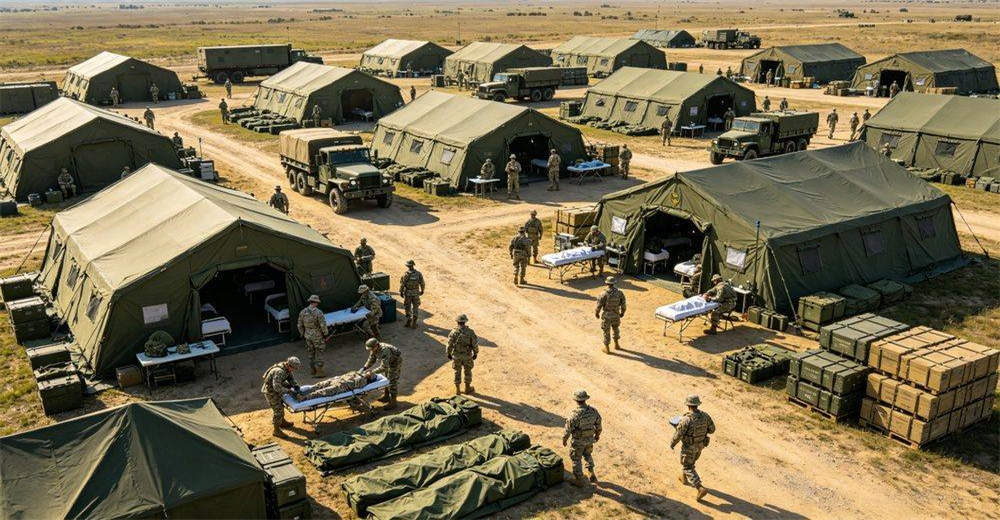

Military camp showing functional zoning with separate areas for command, logistics, medical treatment, living quarters and equipment storage, demonstrating organized layout for efficient field operations and personnel support



Tent and Infrastructure
Military command tents (50sqm, 1-2 units, digital camouflage)
Support/operations tents (40sqm, 2-3 units, camouflage or appropriate color)
Communications shelter (30sqm, 1 unit, modified for equipment)
Medical tent (30sqm, 1 unit, if organic medical support)
Blowers (1 per tent + 2-3 backup units for critical areas)
Ground tarps/groundsheets (1 per tent, plus spares)
Ground stakes and guy lines (complete set per tent + spares, including sand stakes for soft ground)
Tent repair kits (PVC patches, adhesive, tools — 1 per 3 tents)
Camouflage netting (enough to cover all key tents and vehicles)
Blackout liners (for all tents requiring light discipline)
Portable generators (5-15 kW, 2-3 units with fuel for 72-96 hours)
Power distribution (cables, circuit breakers, outlet strips, UPS for critical equipment)
Lighting (LED overhead lights, red/blackout lighting for tactical use, flashlights, headlamps)
Climate control (portable heaters/AC units as needed, insulation liners for cold weather)
Cable pass-through kits (for communications and power cables through tent walls)

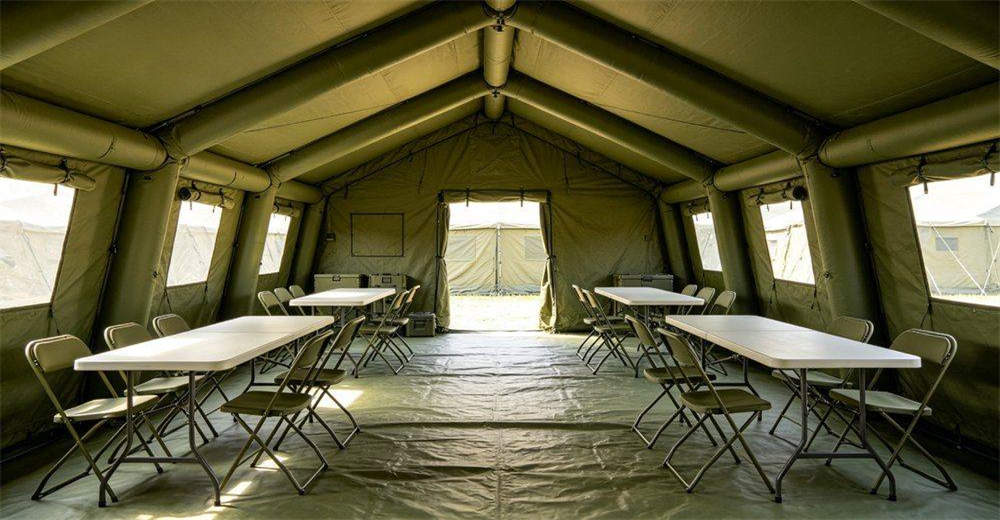

Real interior view of military inflatable tent showing spacious and bright internal space with adequate headroom, natural lighting from windows, organized layout and comfortable environment for command operations and personnel rest




Command and Operations Equipment
Command tables and chairs (folding, lightweight, enough for command staff)
Map boards and map storage (wall-mounted, portable, with map accessories)
Whiteboards and presentation equipment (for briefings and planning)
Computers and displays (laptops, monitors, projectors, secure workstations)
Communications equipment (radios, handsets, antennas, cabling, encryption devices)
Satellite communications (SATCOM terminals, dishes, modems, cabling)
Network infrastructure (routers, switches, cabling, secure data storage)
Classification materials (classified storage, safe, classified processing equipment)
Operations supplies (paper, pens, markers, tape, trackers, status boards)
Intelligence supplies (maps, imagery, analysis tools, secure communications)
Clock and timing equipment (synchronized clocks, timers, operational timeline boards)

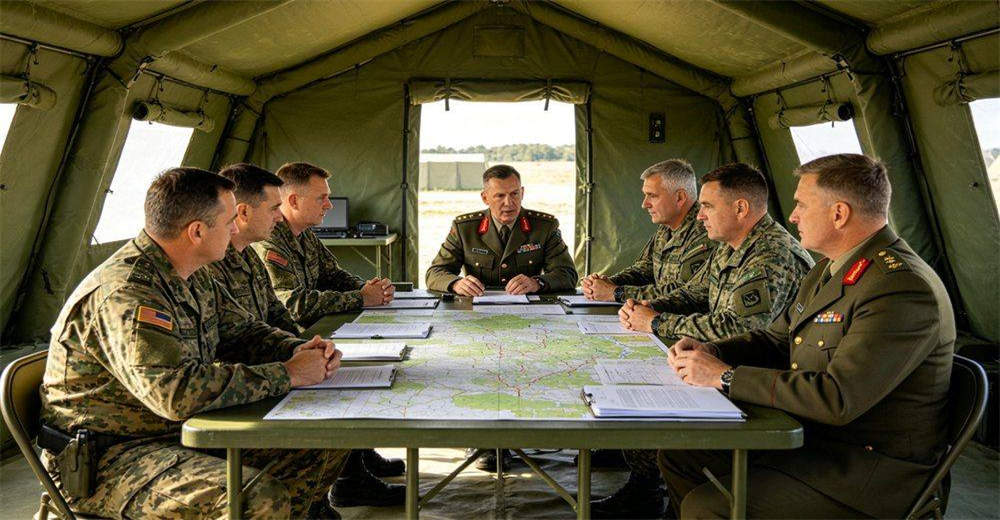

Military officers conducting command meeting inside inflatable tent, showing discussion around tactical table with communication equipment, laptops and operational maps, demonstrating efficient field command and coordination capability




Tactical and Security Equipment
Perimeter security (barriers, concertina wire, sandbags, protective positions)
Observation equipment (binoculars, night vision, thermal imagers, spotting scopes)
Early warning (sensors, alarms, trip flares, acoustic detection)
Access control (ID badges, visitor logs, search equipment, barriers)
Weapons storage (weapons racks, safe, ammunition storage, cleaning equipment)
Personal protective equipment (helmets, body armor, eye protection, gloves)
Chemical/biological/radiological/nuclear protection (gas masks, protective suits, detection equipment, decontamination supplies)
Fire safety (fire extinguishers, fire blankets, smoke detectors, fire response equipment)
Emergency response (first aid kits, trauma kits, evacuation equipment, assembly point markers)
Light discipline (blackout curtains, red lighting, light discipline enforcement equipment)

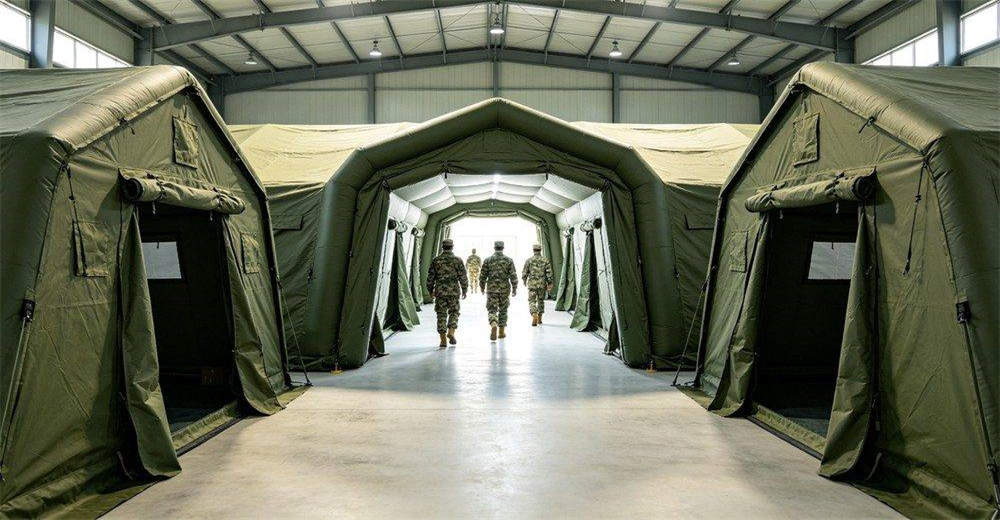

Interior view of connecting corridor between military inflatable tents, showing personnel walking through spacious passage with sealed connections, demonstrating modular camp connectivity and efficient movement between functional areas




Personnel Support and Logistics
Billeting equipment (cots/bunks, sleeping bags, mattresses, personal storage)
Dining facilities (field kitchen, mess tables, chairs, food storage, cooking equipment)
Water supply (potable water storage, distribution, treatment, testing)
Sanitation facilities (portable latrines, showers, handwashing, laundry, waste management)
Hygiene supplies (soap, shampoo, toothpaste, razors, feminine hygiene, laundry detergent)
Medical support (first aid, trauma kits, medications, medical equipment, evacuation coordination)
Recreation/MWR (books, games, sports equipment, internet, phone access, gym equipment)In the deployment of military field tent, Effective military field operations require properly organized, trained personnel following established protocols and command structures. Our tactical tent and army tent solutions support these operations by providing reliable, weatherproof tent environments for command centers, base camp facilities, and field hospital units. The quick setup and fast inflation capabilities minimize deployment time, while the portable shelter design enables flexible configuration across diverse operational scenarios including humanitarian aid and disaster relief missions., trained personnel following established command and staff procedures. The staffing model depends on the unit type, mission requirements, and deployment duration. The military field tents features durable PVC coated fabric.)

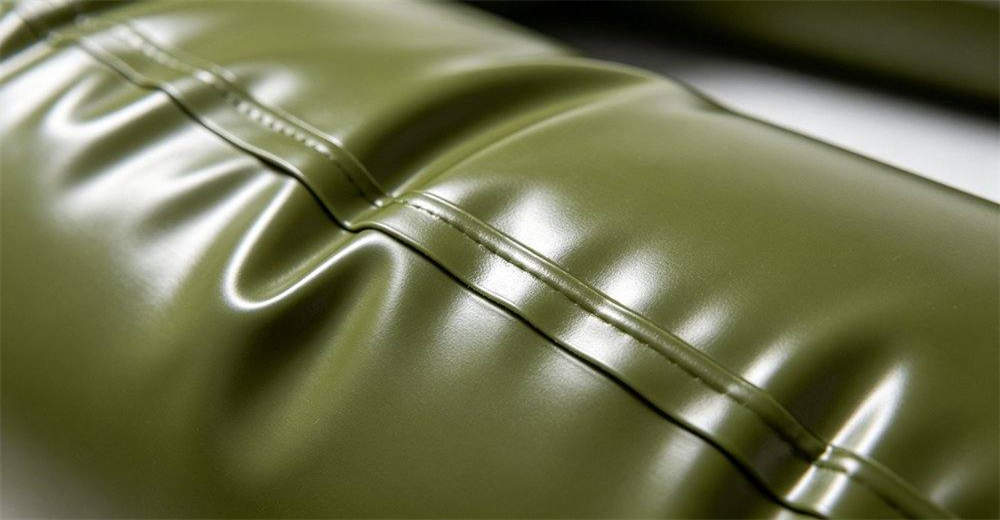

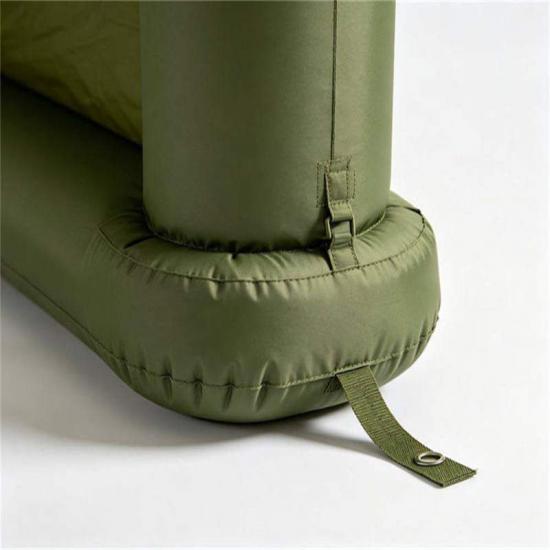

Close-up of inflatable tent air column structure showing high-frequency welded seams, durable PVC material, reinforced stress points and airtight construction, demonstrating quality manufacturing and reliable field performance in operations




Military Logistics Principle: Military supply management follows the "property accountability" principle: every item of equipment is accounted for, tracked, and maintained. Key practices: (1) Hand receipts — every item is signed for by the responsible individual; (2) Inventory schedules — daily sensitive items, weekly command items, monthly all items; (3) Maintenance cycles — preventive mainteitems are turned in or redistributed to units that need them. Proper logistics management ensures equipment availability, reduces waste, and maintains accountability.



Military equipment and supply checklist display showing organized categories of tent components, inflation pumps, repair kits, ground stakes, ropes and accessories, demonstrating complete field shelter package for operational deployment




Technical Specifications and Product Parameters
Our military inflatable tents feature an advanced air beam structure with reinforced inflatable air column design, constructed from premium 1000D PVC material using precision high frequency welding technology. This heavy duty PVC construction ensures exceptional durability and reliability in the most demanding field conditions.

Our air beam tent technology represents a breakthrough in military shelter design. Unlike traditional pole-supported tents, our modular tent system uses inflatable air beams that provide superior structural integrity while reducing setup time by 70%. Each air beam tent can be interconnected to create scalable command complexes, making our modular tent solution ideal for expanding operational requirements.

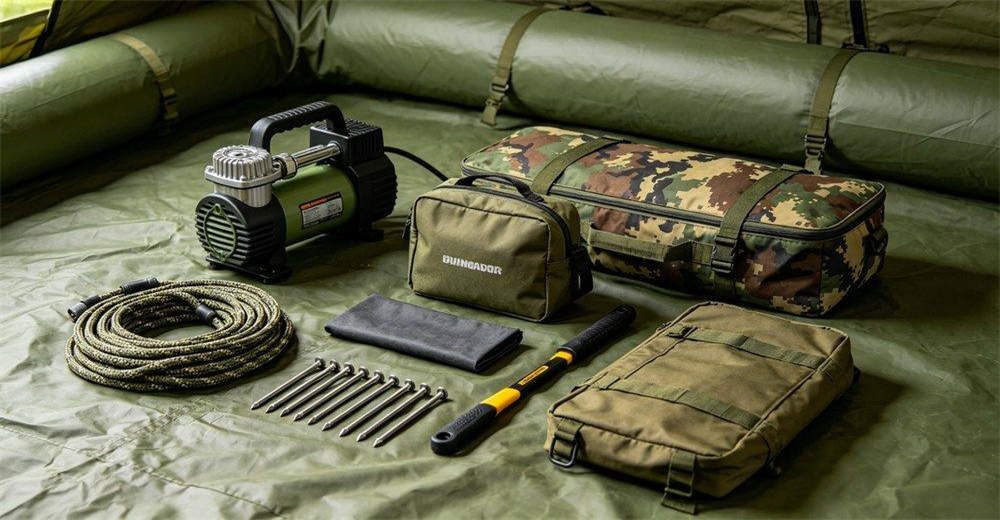

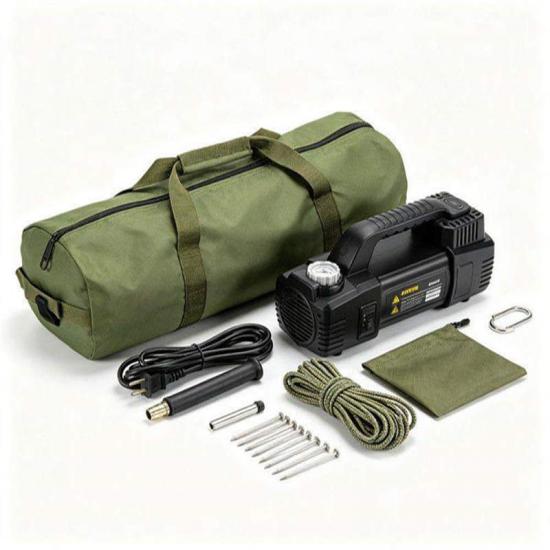

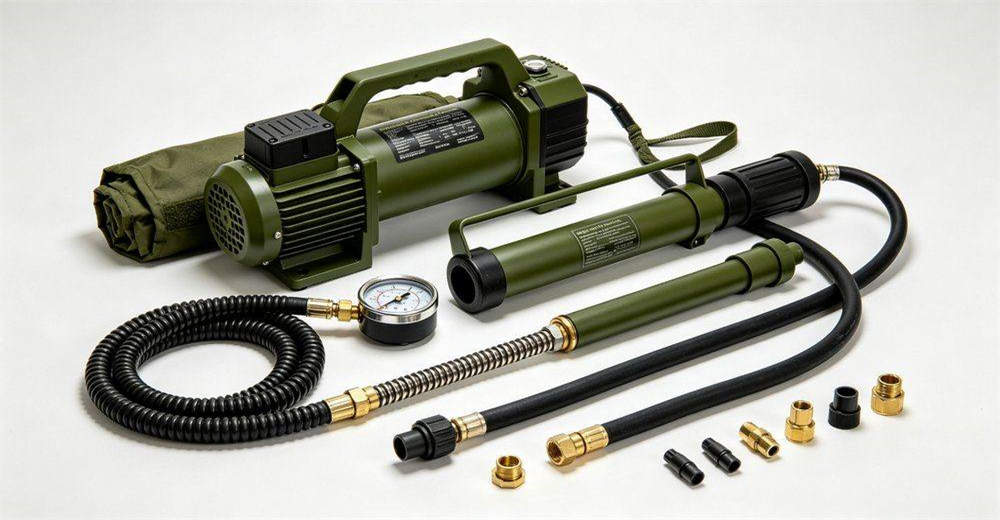

Display of inflation pump accessories including electric high-pressure pump, manual backup pump, pressure gauge, hoses and connectors, showing complete inflation system for reliable military tent deployment in various field conditions


Key Technology: Our patented air beam system uses high-strength TPU-coated fabric with reinforced seams, providing ballistic protection against shrapnel and projectiles. The ballistic protection rating meets NATO STANAG 4569 Level 1 standards, ensuring personnel safety in high-threat environments.

The rapid deployment capability of our military inflatable tents allows a 4-person team to establish a fully operational command post in under 10 minutes. This rapid deployment advantage is critical for time-sensitive missions where every minute counts.

Our military inflatable tents are manufactured to exacting military specifications, with every parameter validated through extensive field testing and third-party certification. The following technical specifications provide detailed performance data for procurement evaluation and operational planning. All specifications are verified through independent testing laboratories and comply with relevant NATO and international military standards.




Ground stake and rope securing system for military inflatable tent, showing heavy-duty steel stakes, durable nylon ropes, tension adjusters and reinforced attachment points, demonstrating reliable wind resistance and field stability




Material Specifications

Parameter

Specification

Test Standard

Notes

Outer Fabric

600D PVC-coated polyester, 650 g/m²

ISO 1421

Available in olive green, tan, navy, or camouflage

Inner Liner

210D polyester oxford, 120 g/m²

ISO 1421

Removable for cleaning and replacement

Air Beam Material

High-strength TPU coated nylon, 1.2 mm thickness

ASTM D3787

Reinforced at all connection points

Floor Material

900D PVC-coated polyester, 900 g/m²

ISO 1421

Integrated bathtub floor with 15 cm walls

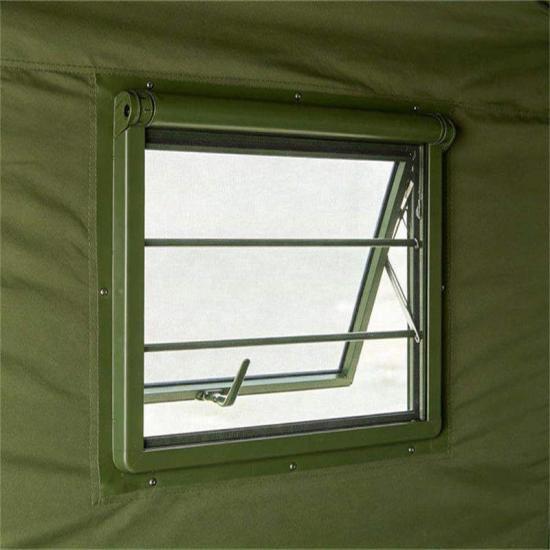

Window Material

Clear PVC, 0.5 mm thickness

ASTM D751

With mesh screen and blackout cover

Zipper

#10 heavy-duty YKK, corrosion-resistant

ASTM D2061

Dual zippers on all doors for emergency egress

Thread

Polyester bonded, UV-resistant

ASTM D2256

All seams double-stitched with reinforced corners



Military inflatable tent in compact storage bag showing portable packed state with carrying handles, durable waterproof material and organized component storage, demonstrating easy transport and rapid deployment capability for field operations




Structural Performance

Parameter

30 sqm Model

50 sqm Model

80 sqm Model

Test Standard

inflation pressure

0.6-0.8 bar

0.7-0.9 bar

0.8-1.0 bar

Manufacturer spec

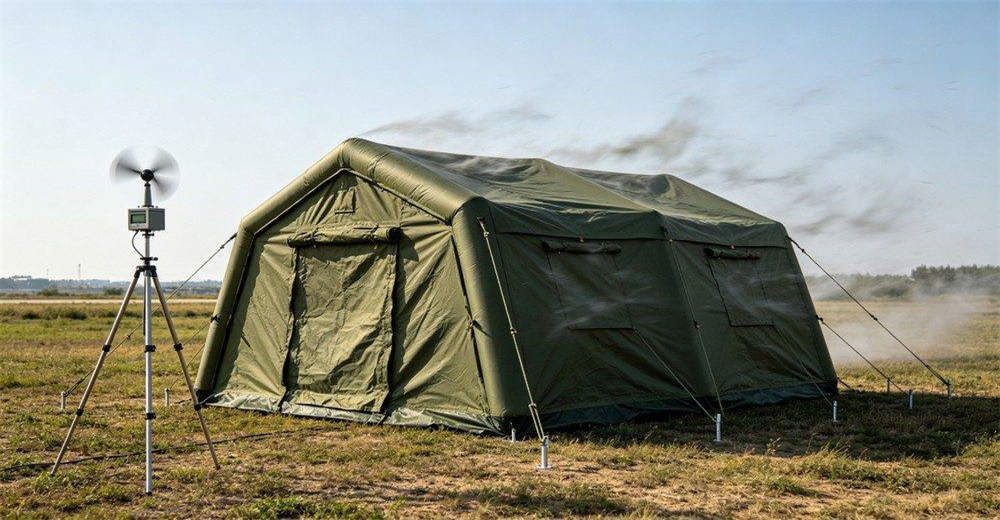

wind resistance

100 km/h (62 mph)

120 km/h (75 mph)

120 km/h (75 mph)

ASTM E1592

Snow Load Capacity

25 kg/m²

35 kg/m²

40 kg/m²

ASTM E1086

Rain Resistance

200 mm/h for 24h

200 mm/h for 24h

200 mm/h for 24h

ISO 22958

Temperature Range

-30°C to +50°C

-30°C to +50°C

-30°C to +50°C

ASTM D1593

UV Resistance

1500 hours

1500 hours

1500 hours

ASTM G154

Flame Retardancy

CPAI-84, NFPA 701

CPAI-84, NFPA 701

CPAI-84, NFPA 701

NFPA 701

Deployment Time (2 persons)

3-5 minutes

5-8 minutes

8-12 minutes

Field tested

Packed Weight

45 kg

65 kg

85 kg

Measured

Packed Dimensions

110×55×45 cm

120×60×50 cm

130×65×55 cm

Measured

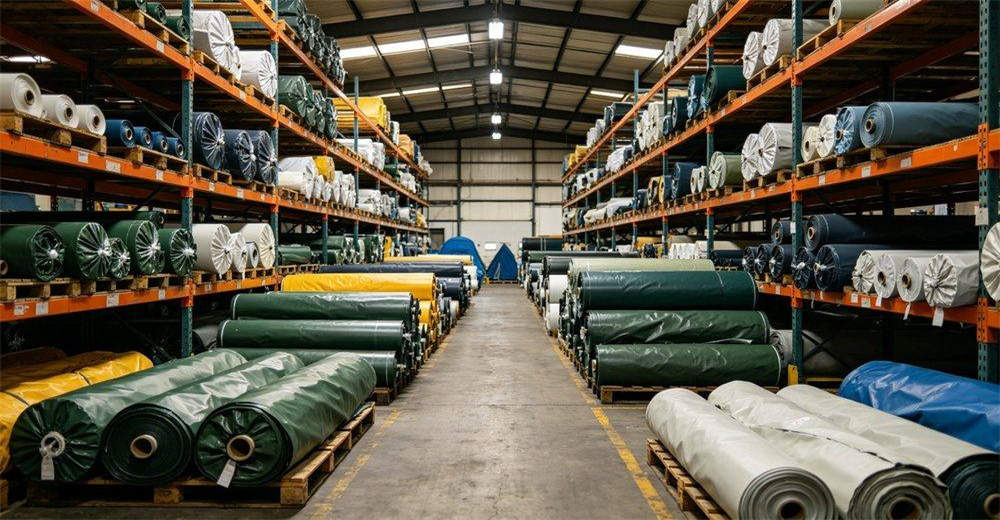

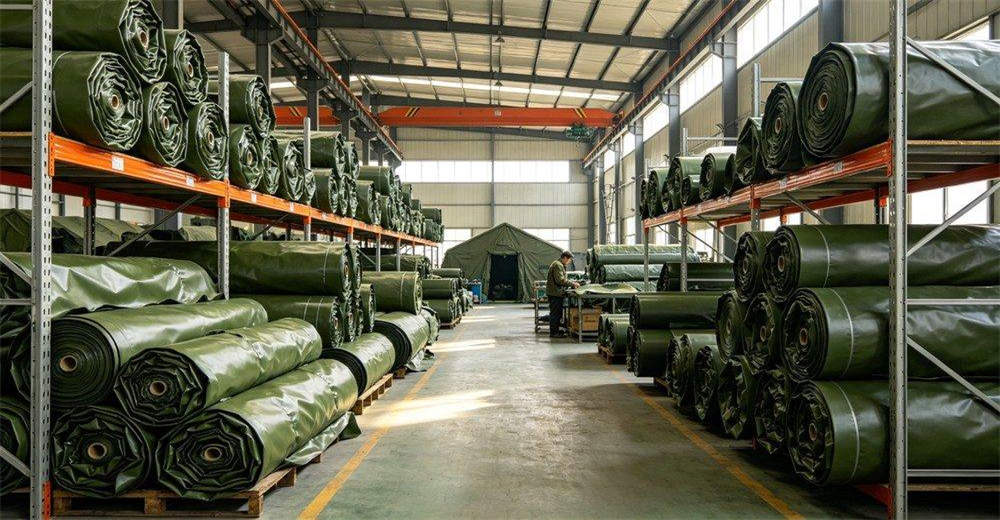

Factory raw material warehouse showing organized rolls of military-grade olive green PVC fabric, quality inspection labels and inventory management, demonstrating reliable material sourcing for manufacturing high-performance field shelter products




Customization Options
We offer comprehensive customization services to meet specific operational requirements. All customizations are performed at our factory during production, ensuring factory-quality integration and warranty coverage. Common customization options include:
Color Options: Olive green, coyote tan, navy blue, black, white, or custom camouflage patterns (multicam, woodland, desert, digital)
Logo Printing: Unit insignia, national flags, command emblems, or organizational logos printed on roof or walls
Layout Modifications: Custom door/window placement, internal partition walls, separate rooms, or vestibule additions
Equipment Integration: Pre-installed HVAC units, generator connections, lighting systems, or communication equipment mounts
Ballistic Upgrade: Enhanced fragmentation protection with additional aramid fiber layers (NIJ Level IIIA protection)
CBRN Protection: Chemical, biological, radiological, nuclear protective liner with filtered ventilation system
Solar Integration: Flexible solar panel roof covering with integrated battery storage and power management
Lead Time for Custom Orders: Standard models ship within 15-20 working days. Custom orders require 25-35 working days depending on complexity. Rush orders can be accommodated with prior arrangement.



Tent repair kit display showing PVC repair patches, adhesive, cleaning cloth, scissors and application tools, demonstrating complete field maintenance solution for quick repairs of military inflatable tents during operational deployment




Product Model Comparison

Model

Floor Area

Capacity

Setup Time

Weight

Key Features

MT-30

30 sqm

10-15 personnel

5-8 min

85 kg

Command post, rapid deployment

MT-50

50 sqm

20-25 personnel

8-10 min

120 kg

Field hospital, modular expansion

MT-80

80 sqm

30-40 personnel

10-15 min

180 kg

Operations center, ballistic protection

MT-120

120 sqm

50-60 personnel

15-20 min

260 kg

Joint command, full climate control



Close-up of military tent window with insect screen, showing transparent PVC window panel, fine mesh screen, zippered closure and ventilation design, demonstrating comfortable interior environment and field usability in operations



All models support our modular tent interconnection system, allowing multiple units to be joined for expanded operational capacity. The air beam tent technology ensures consistent structural performance across all sizes.



Technical specifications display for military inflatable tent showing dimension annotations, capacity ratings, material specifications and performance parameters, demonstrating comprehensive product data for informed procurement and field deployment decisions



Staffing and Command Structure
Effective military field operations require properly organized, trained personnel following established command and staff procedures. The staffing model depends on the unit type, mission requirements, and deployment duration.



Air column structure parameters showing tube diameter, wall thickness, pressure rating, material composition and load-bearing capacity, demonstrating engineered structural design for reliable military tent performance in extreme field conditions



Reco mmended Staffing: Battalion/Brigade Command Post
Best Practices and Lessons Learned
Based on decades of military field operations worldwide, the following best practices and lessons learned will help you maximize the effectiveness of your shelter deployment. Our field operations tent solutions have been proven in humanitarian aid missions, disaster relief operations, and emergency shelter deployments across diverse climates. The command center and command post tent configurations provide secure, weatherproof environments for critical decision-making, while the portable shelter design enables rapid relocation as operational needs change. Our base camp and field hospital tent solutions use 1000D PVC and heavy duty PVC materials with high frequency welding for maximum durability., the following best practices and lessons learned have emerged from actual operational experience.



Wind resistance performance test of military inflatable tent in strong wind environment, showing tent maintaining structural stability with secured ground stakes and tensioned ropes, demonstrating reliable field performance in adverse weather conditions



Depl oyment Best Practices
Mission-configured tent packages: The fastest military deployments come from units that maintain mission-configured tent packages — pre-packed, pre-organized, ready-to-deploy systems tailored to specific mission requirements (command post, medical, logistics, FOB). Each package includes tents, blowers, stakes, camouflage, power, and basic interior equipment, all packed and labeled for immediate deployment. Pre-position these packages at strategic locations or maintain them as part of unit equipment sets. Regularly inspect and rotate inventory to ensure readiness.


Cross-training and redundancy: Military units that achieve the fastest, most reliable deployments cross-train personnel in multiple roles: every soldier knows tent setup, basic communications, power generation, and security procedures. This ensures that regardless of which personnel are available, the unit can establish operations. Maintain redundancy in critical systems: backup blowers, redundant communications, backup power, alternate command post locations. Cross-training and redundancy ensure operational continuity even when personnel or equipment are lost or unavailable.


Phased capability establishment: Never wait for all tents to be deployed before establishing command capability. Start with minimum essential command and control in one tent (commander, operations, basic communications), then add capabilities as additional tents are deployed (intelligence, logistics, personnel, full communications). This ensures command and control is established within 3-10 minutes, even if full facility setup takes several hours. Phased establishment also allows the unit to begin operations while still improving facilities — mission first, comfort second.

Camouflage and signature management: In modern military operations, signature management is critical for survivability. Deploy camouflage netting over all key facilities, use disruptive patterns, take advantage of natural cover, and avoid regular geometric layouts. Manage thermal signature (position tents to avoid thermal contrast, use natural cover, manage heat emissions), acoustic signature (minimize noise, use directional speakers, manage generator noise), and electromagnetic signature (manage radio emissions, use directional antennas, minimize transmissions, practice emissions control). Signature management should be integrated into all planning and operations, not treated as an afterthought.


Regular displacement drills: For mobile operations, conduct regular displacement drills to practice rapid teardown, movement, and re-establishment. Time the process, identify bottlenecks, and improve procedures. Units that practice displacement regularly can tear down and re-establish a command post in under 2 hours — critical for avoiding targeting and maintaining operational tempo.
 Include all elements in drills: command, operations, intelligence, communications, logistics, security. Document lessons learned and update procedures based on drill results.



Waterproof performance test of military inflatable tent in heavy rain environment, showing water beading on PVC surface, sealed seams and dry interior, demonstrating reliable weather protection for field operations in rainy conditions




Common Mistakes to Avoid

Factory Capability and Quality Assurance

As a leading military tent manufacturer and trusted military tent supplier, we specialize in wholesale military tents and bulk military tents for governments, defense organizations, and humanitarian agencies worldwide. We offer comprehensive custom military tents and OEM military tents services, providing factory direct military tents at competitive prices with uncompromising quality.


Cold and heat resistance performance of military inflatable tent in extreme environments, showing tent maintaining flexibility and structural integrity in both freezing arctic and scorching desert conditions, demonstrating all-weather field capability



Certifications and Standards






Quality Management
Environmental Management
Occupational Health
Ballistic Protection
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
NATO STANAG 4569 L1





Fire Retardancy
Waterproof Rating


GB 8624 B1 / EN 13501
IPX7 / 5000mm H2O



Military personnel organization and command structure diagram showing clear hierarchy of command, operations, logistics and support roles, demonstrating efficient team coordination for field camp deployment, operation and maintenance of inflatable shelters



Our manufacturing facility spans 25,000 square meters with 200+ skilled workers, producing over 50,000 tents annually. We maintain strict quality control at every stage, from raw material inspection to final product testing. Each air beam tent undergoes 72-hour continuous inflation testing before shipment.

With over 15 years of specialized experience in military and emergency shelter manufacturing, our factory has established itself as a trusted supplier to armed forces, humanitarian organizations, and emergency response agencies worldwide. Our commitment to quality, innovation, and reliable delivery has earned us long-term partnerships with customers in over 60 countries.



Best practices and lessons learned summary for military inflatable tent deployment, showing proper setup procedures, maintenance routines, inspection checkpoints and operational tips derived from extensive field experience and real-world usage



Factory Overview and Production Capacity
Our 25,000 square meter manufacturing facility is purpose-built for inflatable tent production, with dedicated production lines for cutting, welding, assembly, and quality control. The factory employs over 200 skilled workers, including 25 engineers and quality control specialists with military equipment manufacturing experience.



Parameter

Specification

Factory Area

25,000 m² (production + warehouse + office)

Production Area

18,000 m² dedicated to tent manufacturing

Total Employees

220 (150 production, 25 QC, 25 engineering, 20 admin)

Monthly Production Capacity

800-1,200 units (standard models)

Annual Production Capacity

10,000-15,000 units

Export Ratio

85% exported, 15% domestic

Countries Served

60+ countries across 5 continents




Routine maintenance and care of military inflatable tent showing cleaning procedures, inspection checkpoints, proper storage methods and preventive maintenance tasks, demonstrating how to extend tent lifespan and ensure reliable field performance over time




Quality Control and Certification
Quality is the foundation of our military tent manufacturing business. We operate a comprehensive quality management system that covers every stage of production from raw material inspection to final product testing. Our quality control process includes 12 separate inspection checkpoints, ensuring that every tent that leaves our factory meets or exceeds military specifications.

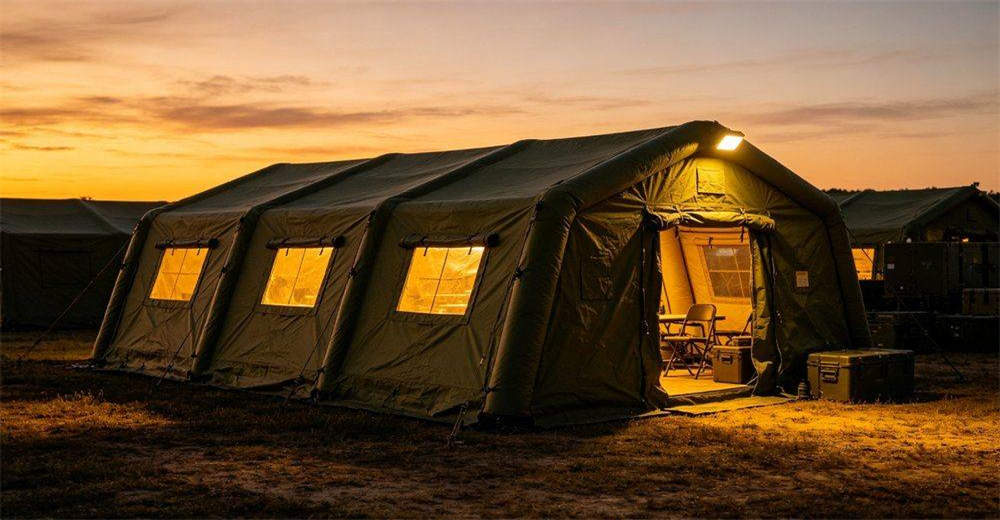

Nighttime usage scene of military inflatable tent with warm interior lighting glowing through windows, exterior security lighting and personnel activity, demonstrating comfortable and functional field shelter for 24-hour continuous operations in dark conditions



Certifications and Standards:
ISO 9001:2015 Quality Management System Certification
ISO 14001:2015 Environmental Management System Certification
OHSAS 18001 Occupational Health and Safety Certification
NATO Codification System (NSN) registered supplier
CPAI-84 Flame Retardancy Certification (all fabrics)
NFPA 701 Flame Retardancy Certification
REACH Compliance (EU chemical regulations)
RoHS Compliance (restriction of hazardous substances)

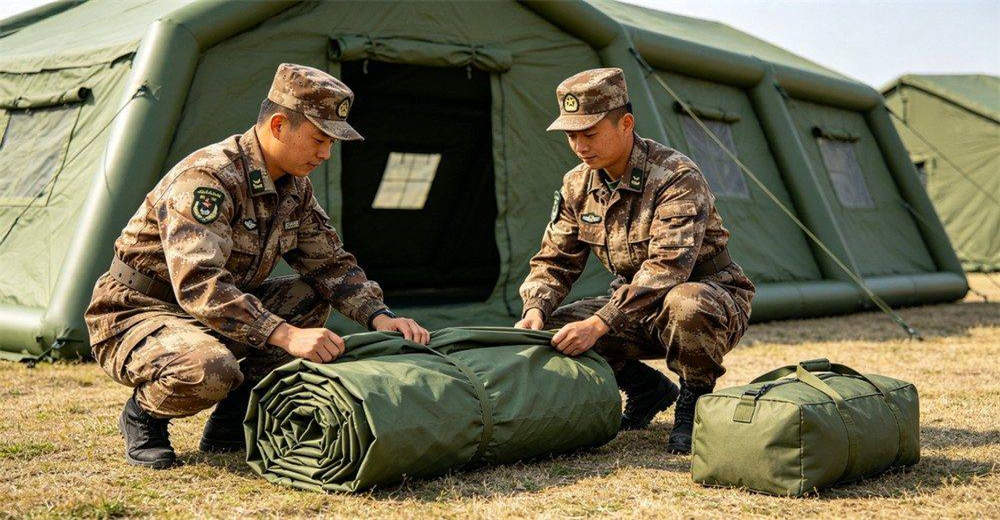

Soldiers rapidly packing and folding military inflatable tent after deflation, showing coordinated team effort, systematic folding technique and compact rolling process, demonstrating quick teardown capability for rapid relocation and field mobility




Quality Control Process (12 Checkpoints):
Raw material incoming inspection (fabric weight, thickness, tensile strength, color matching)
Cutting accuracy verification (dimensions within ±2mm tolerance)
Welding quality inspection (seam strength, airtightness, visual inspection)
Stitching quality inspection (stitch density, thread tension, reinforcement points)
Hardware inspection (zippers, buckles, D-rings, Velcro strength testing)
Air beam pressure testing (24-hour pressure retention test at 1.5x operating pressure)
Waterproof testing (24-hour rain simulation at 200mm/hour)
Wind load testing (structural integrity at 120 km/h wind speed)
Flame retardancy verification (random sample testing per production batch)
Final assembly inspection (complete tent deployment and functional test)
Packaging inspection (accessories complete, documentation included, packaging integrity)
Pre-shipment inspection (random sample audit by independent QC team)



Safety usage guidelines for military inflatable tent showing proper anchoring procedures, inflation pressure limits, electrical safety, fire prevention and emergency protocols, demonstrating safe operational practices for field deployment and usage




Core Advantages and Customer Base
Why Military Customers Choose Us:
Specialized Expertise: 15+ years focused exclusively on military and emergency inflatable tents, not general consumer tents
Military-Grade Quality: Every tent built to military specifications with 12-point quality control process
Reliable Delivery: 98% on-time delivery rate over the past 5 years, with expedited options available
Customization Capability: Full in-house design and engineering team for custom modifications and new product development
Competitive Pricing: Factory-direct pricing with no middleman markup, volume discounts for large orders
After-Sales Support: 2-year warranty, dedicated technical support team, spare parts availability for 10+ years
Large Production Capacity: 10,000+ units annual capacity, capable of fulfilling large government and military contracts

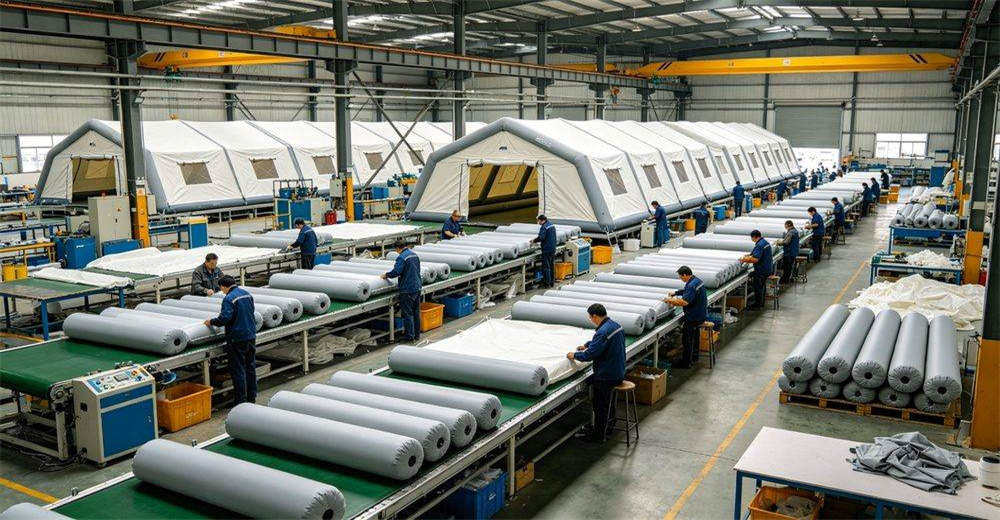

Factory production capability showing modern manufacturing line for military inflatable tents, with automated cutting machines, high-frequency welding equipment, quality inspection stations and organized assembly workflow, demonstrating large-scale production capacity



Representative Customers:
Ministry of Defense (multiple countries)
Armed Forces Logistics Command
United Nations Peacekeeping Operations
International Committee of the Red Cross (ICRC)
North Atlantic Treaty Organization (NATO) support contractors
National Disaster Management Agencies
Emergency Medical Services (EMS) providers
Private military and security companies
We welcome factory inspections and customer audits. Our facility is open for visit by appointment, and we encourage potential customers to verify our production capability and quality control processes in person before making procurement decisions.

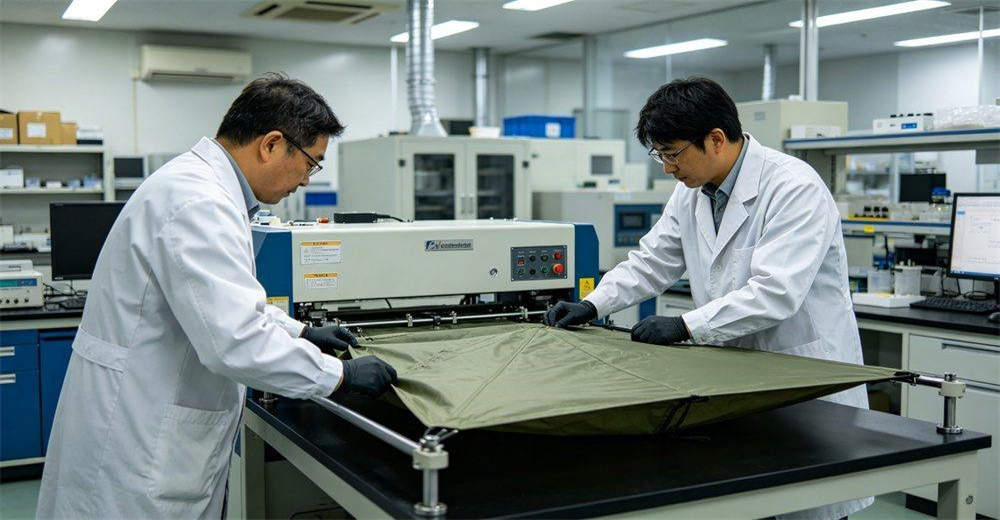

Quality inspection process for military inflatable tents showing raw material testing, weld strength verification, air leakage testing, dimensional checks and final product inspection, demonstrating rigorous quality assurance throughout manufacturing process




Frequently Asked Questions (FAQ)

Related Military Shelter Solutions

50sqm Military Command Tent - View our main military command inflatable tent product
60sqm Large Field Hospital Tent - View our large field hospital tent
Firefighting Decontamination Scenario - View the complete deployment solution for firefighting decontamination scenarios
Disaster Relief Inflatable Tent - Explore our emergency response shelter solutions



Raw material inspection of military-grade PVC fabric showing tensile strength testing, thickness measurement, color consistency check, waterproof coating verification and flame retardant testing, ensuring only highest quality materials enter production process



Q1: What inflatable tent configuration is needed for a battalion-level command post?

 A: A battalion command post requires 3-5 connected tents: main command center (50sqm), communications tent (30sqm), meeting room (40sqm), secure storage (20sqm), and personnel shelter (30sqm). Total 170-200sqm for 25-40 personnel, connected via weather-sealed tunnels. We provide complete command post packages with camouflage netting and bl.



Final product inspection before factory shipment showing complete inflation test, structural verification, accessory completeness check, packaging inspection and documentation review, ensuring every military inflatable tent meets strict quality standards before delivery



Q2: How to set up a tactical operations center with connected military inflatable tents?

A: TOC setup follows: site selection (level, concealed, good communications), site preparation, tent deployment (main command first, then connect support tents), anchoring, equipment setup, camouflage, communications setup, and final inspection. A trained 6-8 person team deploys a full TOC in 3-10 minutes. We provide setup SOPs and depl.



Packaging and shipping process for military inflatable tents showing protective wrapping, labeled cartons, palletized loading, container stuffing and logistics documentation, demonstrating reliable packaging and efficient global delivery for field shelter products



Q3: What camouflage options and field concealment are available for military command tents?

A: Military tents offer: digital camouflage patterns (woodland, desert, urban, multi-terrain), camouflage netting systems with foliage loops, blackout inner liners to prevent light emission, thermal signature reduction fabrics, and low-profile design. Custom patterns available for specific environments. All materials meet military durability standards and are fire-retardant. We provide camouflage consultation. Our military field tents is built to last.

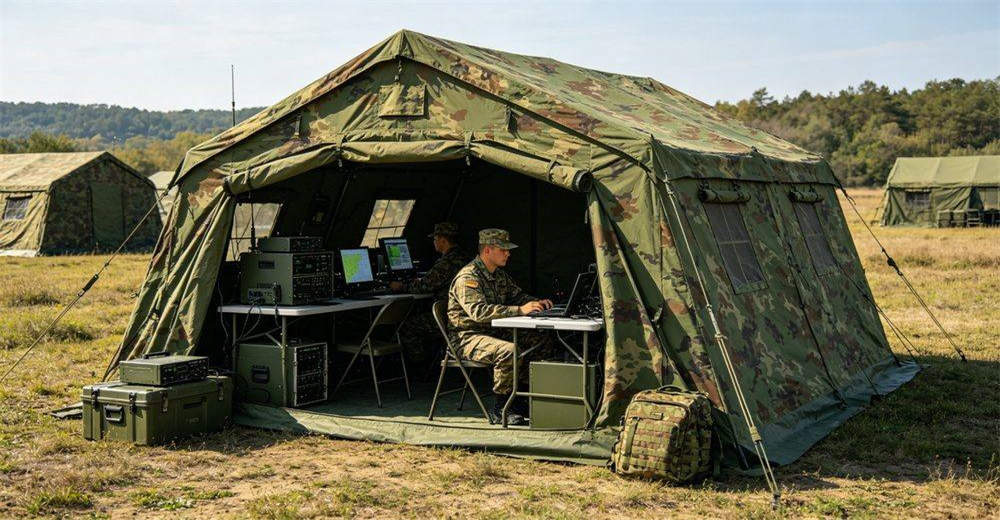

Frequently asked questions about military inflatable tents covering deployment time, maintenance requirements, lifespan expectancy, customization options, warranty coverage and technical support, providing comprehensive answers for informed procurement decisions



Q4: How quickly can a military command tent be deployed and torn down during field exercises?

A single 50sqm command tent deploys in 5-8 minutes by 3-4 trained personnel including anchoring. A complete battalion command post (3-5 connected tents with equipment) deploys in 3-10 minutes by 6-8 person team. Key factors: pre-packed equipment, trained teams, clear layout, standardized procedures. We provide deployment training and timed drills.

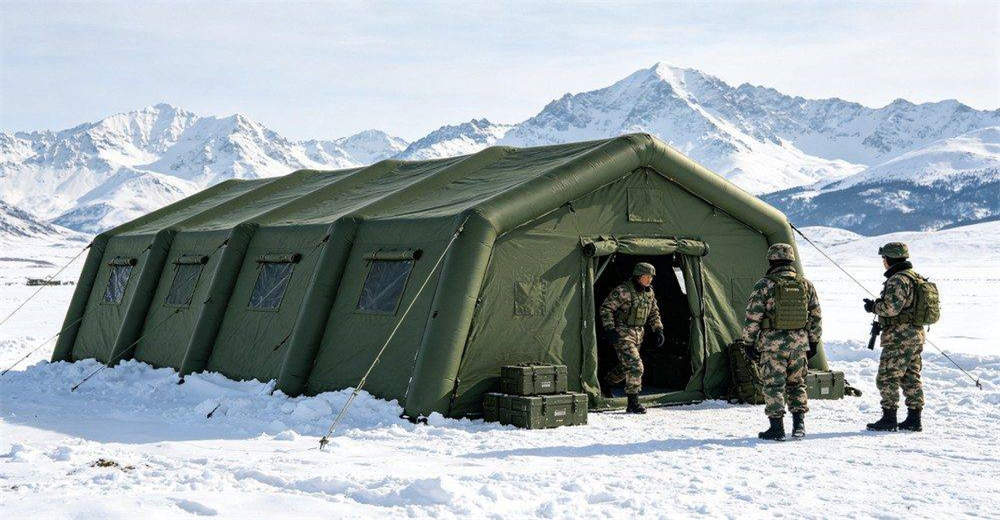

Military inflatable tent in snowy cold environment with snow-covered mountain background, showing tent maintaining structural integrity and providing warm shelter in freezing arctic conditions, demonstrating reliable cold-weather field performance for operations




Q5: What power and climate control is needed for a command post tent with electronics?
A battalion command post requires: primary power (15-30 kW diesel generator), backup power (5-10 kW generator or UPS for critical equipment), power distribution (military-grade panels), and climate control (portable AC 5-10 kW for hot, forced air heaters 5-15 kW for cold). We provide complete power and climate packages sized for your configuration.

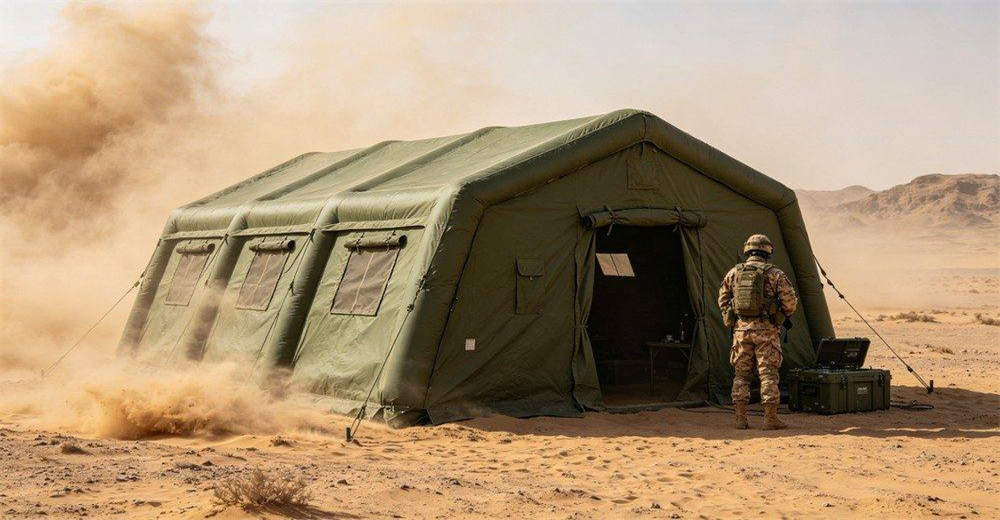

Military inflatable tent in desert sandy environment with blowing dust and sand, showing tent withstanding harsh arid conditions, maintaining interior cleanliness and providing shade, demonstrating reliable performance in extreme desert field operations



Q6: How to maintain camouflage coating and military tent fabric during field exercises?
Maintenance includes: regular inspection for tears, cleaning with mild soap, camouflage care (inspect netting, replace damaged sections), repair with PVC patches, and proper storage (ensure completely dry, cool dry area). Scheduled: weekly inspection during deployment, monthly cleaning, annual refurbishment. Proper maintenance extends lifespan from 3-5 to 8-10 years. We provide repair kits and maintenance training.

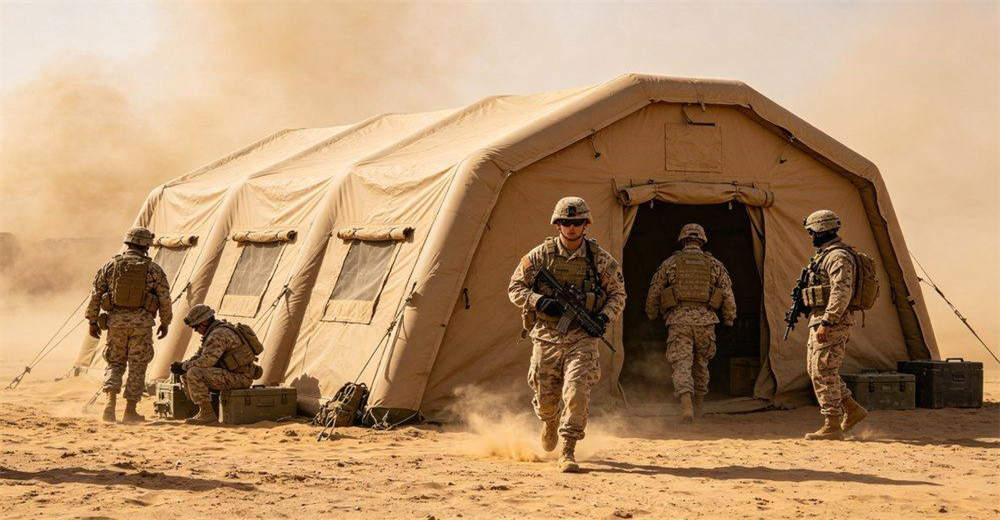

Multiple personnel using military inflatable tent simultaneously, showing team collaboration, shared workspace, comfortable capacity and organized interior layout, demonstrating tent ability to accommodate groups for command, meetings and field operations



Q7: Can military command tents be customized with EMI shielding and secure windows?
Yes, military tents offer extensive customization: EMI/RFI shielding (conductive liner attenuating 60-100 dB across 10MHz-10GHz), secure windows, equipment mounting points (reinforced for radios, monitors, map boards, antennas), cable pass-throughs (sealed ports maintaining EMI integrity), secure storage (locked cabinets for classified materials). All customizations maintain structural integrity and weather resistance. We provide EMI testing documentation.



Customization service display for military inflatable tents showing available options including size variations, color choices, logo printing, window placements, door configurations and interior layouts, demonstrating flexible manufacturing to meet specific operational requirements and preferences



Q8: What is the cost range for a complete military command tent system?
A single 50sqm command tent starts at $2,500-$4,500 USD. A basic command post kit ranges $8,000-$20,000. A medium battalion post ranges $25,000-$60,000. A large brigade complex ranges $80,000-$250,000+. Military volume discounts available for large orders. Contact us for a customized proposal based on your operational requirements and budget.



Delivery timeline explanation showing production scheduling, manufacturing phases, quality inspection, packaging and shipping stages for military inflatable tents, demonstrating transparent lead times and reliable delivery commitments for field shelter procurement




Build Your Military Field Shelter Capability
Ready to upgrade your field shelter capabilities?
As your trusted military tent supplier and military tent manufacturer, we deliver complete shelter solutions tailored to your operational requirements.
Our wholesale military tents program offers competitive pricing for bulk military tents orders, with custom military tents and OEM military tents options available.

Experience the benefits of factory direct military tents with our tactical tent and army tent solutions, featuring quick setup, easy assembly, and fast inflation technology.
 Our field operations tent systems include command post tent and command center configurations, supported by inflatable air column and air beam structure engineering with waterproof PVC and wind resistant performance.

As your trusted military tent supplier and military tent manufacturer, we're here to support your mission with premium military inflatable tent solutions.
Whether you need wholesale military tents for large-scale procurement or custom military tents tailored to your specifications, we deliver factory-direct quality at competitive prices.


After-sales service and support for military inflatable tents showing warranty coverage, repair services, replacement parts supply, technical assistance and maintenance guidance, demonstrating comprehensive customer support ensuring long-term product satisfaction and field reliability



Why Choose Our Military Tent Solutions?

Our comprehensive military tent solutions include bulk military tents procurement options for large-scale orders, with OEM military tents manufacturing capability for private label branding.

Constructed from premium 1000D PVC material with reinforced seams, our tents deliver exceptional durability for field operations. Whether you need bulk military tents for humanitarian missions, OEM military tents for government contracts, or standard 1000D PVC military shelters, we have the manufacturing capacity and expertise to meet your requirements. Contact us today for competitive pricing on bulk military tents and custom OEM military tents solutions.

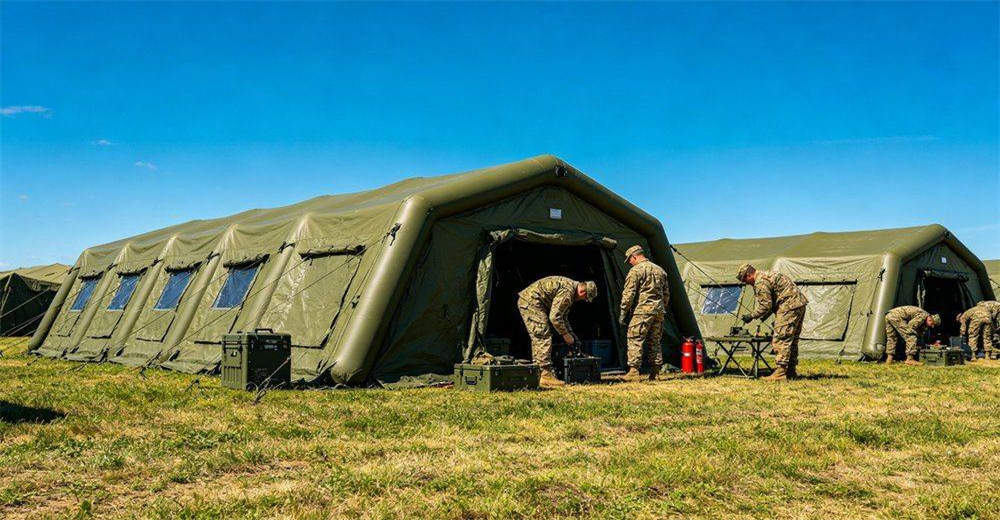

Customer case studies showing successful deployment of military inflatable tents across various operational scenarios, international clients and field applications, demonstrating proven performance, reliability and customer satisfaction in real-world military and emergency operations






If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Copyright © Custom Disaster - Relief Bedding: Tents, Sleeping Bags, Blankets All Rights Reserved

Leave a message

    If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!



the professional team to service !
